The Indispensable Role of Safety Relays in Ensuring SMT Machine Safety
Application of Safety Relays in SMT Machines
1. Emergency stop and safety
In the SMT production line, the high speed and complex operation of the equipment places high demands on safety. The safety relay, with its unique forcibly guided contact structure, can quickly cut off the power supply in an emergency to ensure that the machine stops immediately, thus preventing accidents. For example, during equipment maintenance or troubleshooting, the operator can press the EMERGENCY STOP button to activate the safety relay to cut the power supply and ensure the safety of the operator.
2. Circuit fault protection
SMT machine contains a complex circuit system, any circuit failure may cause equipment abnormality or even damage. Safety relay has overload protection, short-circuit protection, undervoltage protection, leakage protection, temperature protection and other functions. When there is an abnormal current, short circuit, unstable voltage or high temperature in the circuit, the safety relay can respond quickly to cut off the power supply, prevent the fault from spreading and protect the equipment from further damage.
3. Improve system stability and reliability
The efficient operation of an SMT production line depends on the stable operation of each device. The safety relay, through its dual-channel signal type design, ensures that the equipment can only operate normally when both channels are normal. This design greatly improves system stability and reliability, reduces equipment downtime due to single point of failure, and improves production efficiency.
4. Interlock and link control
SMT machines often have complex interlock and linkage relationships between multiple devices. Safety relays can be used in combination with other safety components (e.g., safety doors, light curtains, etc.) to form a safety circuit. If a guard is not closed or a light curtain is blocked, the safety relay will prevent the equipment from starting or continuing to operate, ensuring that the operator is working in a safe area.

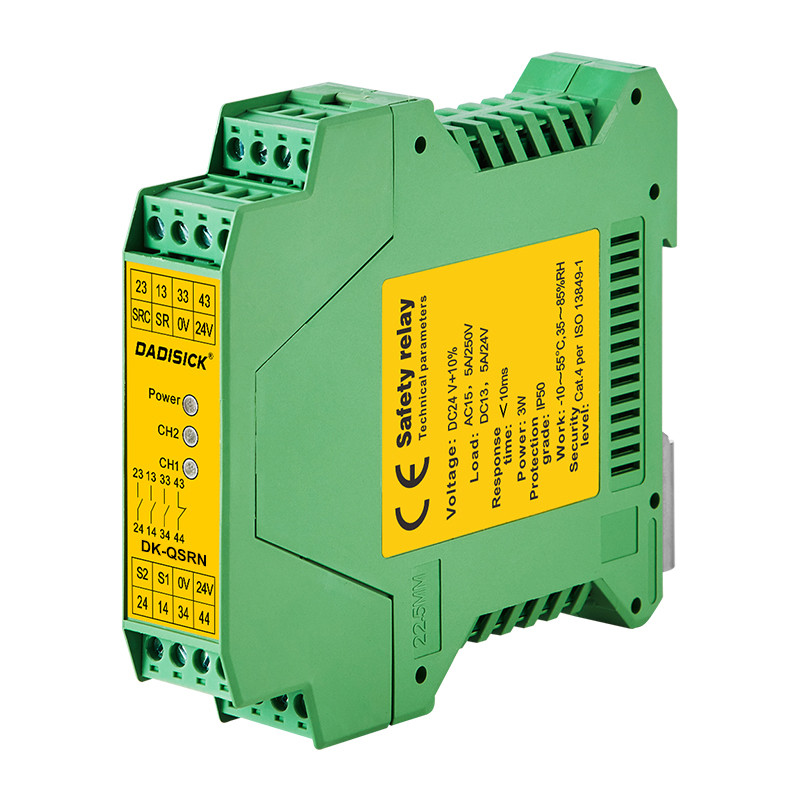

Safety Relay QSRN
Power supply: 24 V DC
Relay safety output: 3NO + 1NC (PNP or NPN)
Maximum switching capacity: 12 A (Distributed on all safety output contacts)
Transistor signal output: <500 mA 24 V DC
Contact resistance: <100 mΩ
Size: 117 × 100 × 22.5 mm
Shell material: flame retardant PA66
Storage temperature: -40℃ ~ 105℃
The Role of Safety Relays in a Complete Set of Equipment
The safety relay plays the role of "safety guardian" in the complete set of SMT machines. Not only can it quickly cut off the power supply in an emergency to protect operators and equipment from harm, but it also improves the stability and reliability of the system through its various protection functions. In addition, the dual-channel signaling design of the safety relay and the link control with other safety components further enhance the safety protection capability of the equipment, providing a strong guarantee for the continuous, efficient and safe operation of the SMT production line.
In conclusion, the use of safety relays in SMT machines is indispensable. With its unique safety protection function and stable performance, it provides a solid foundation for the safe operation of SMT production lines. With the continuous development of industrial automation, the importance of safety relays will become more and more prominent and an important part of the safety field of industrial electrical equipment.
