Safety Interlock Switches Download Center

Safety Interlock Switches Introduction

The purpose of a safety interlock switch is to reduce the risk of accidents, injuries, or damage that could result from accidental or unauthorized operation. By implementing a safety interlock switch, it ensures that only authorized personnel with the appropriate knowledge or credentials can activate or deactivate the device. For example, in machinery or industrial environments, safety interlock switches are often used to prevent accidental startup during maintenance.
Prevents accidental start-up during maintenance
Prevents accidental start-up during maintenance
Only authorized personnel can open the device
Only authorized personnel can open the device
Monitor door status to prevent accidental entry
Monitor door status to prevent accidental entry

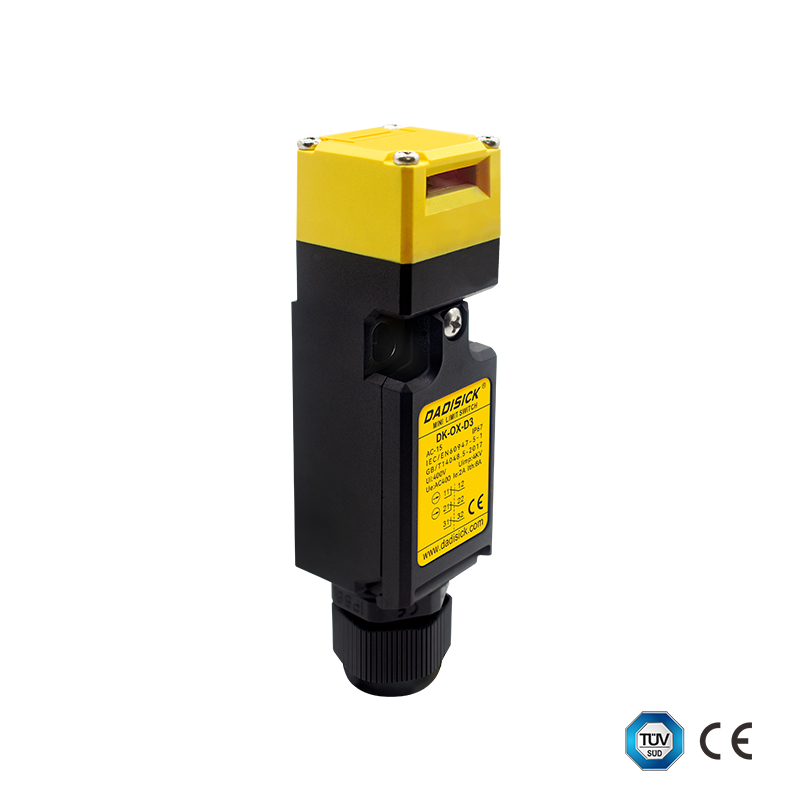

DADISICK safety switch OX-D3 & OX-D2 Series

DADISICK safety switch OX-D3 & OX-D2 Series

Configured with 5 contact structures； Adjustable up to 8 direction key operation holes; Adaptable to 11 types of operation keys.
DADISICK safety switch OX-D3 & OX-D2 Series Data Sheet

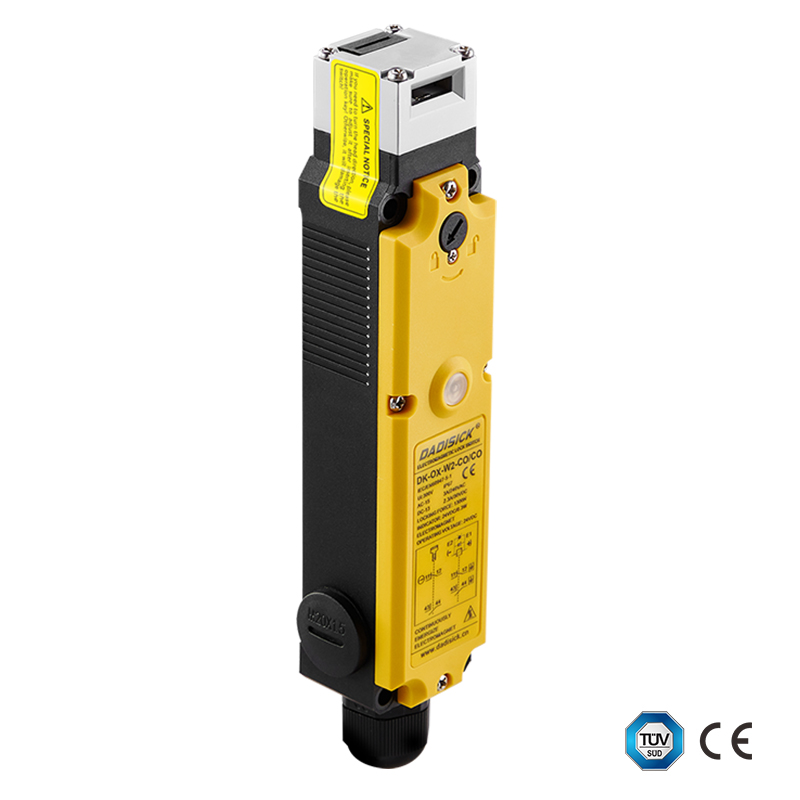

DADISICK safety interlock switch OX-W2 Series

DADISICK safety interlock switch OX-W2 Series

Safety interlock switches with locking function ensure that safety guards, doors and other protective covers remain secure until the hazardous condition is eliminated.4 sets of gold-plated contacts;14 contact combinations;Locking force 1300N；Indicator light + emergency unlocking;Optional back unlock function.
DADISICK safety interlock switch OX-W2 Series Data Sheet

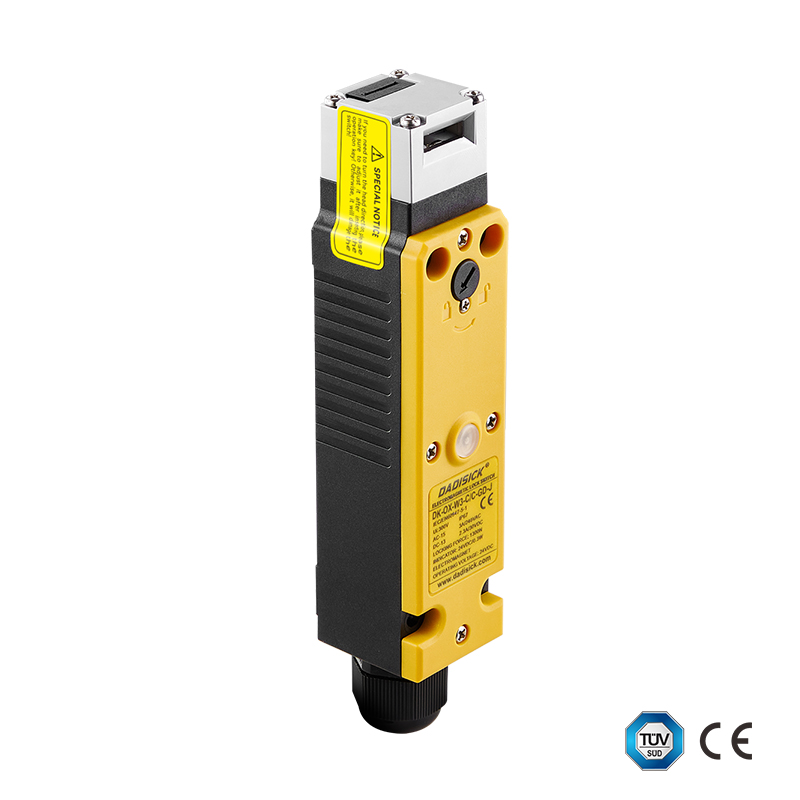

DADISICK safety interlock switch OX-W3 Series

DADISICK safety interlock switch OX-W3 Series

Safety interlock switches with locking function ensure that safety guards, doors and other protective covers remain secure until the hazardous condition is eliminated.2 sets of gold-plated contacts; 6 contact combinations;Locking force 1300N； Indicator light + emergency unlocking;Adaptable to 11 types of operation keys.
DADISICK safety interlock switch OX-W3 Series Data Sheet

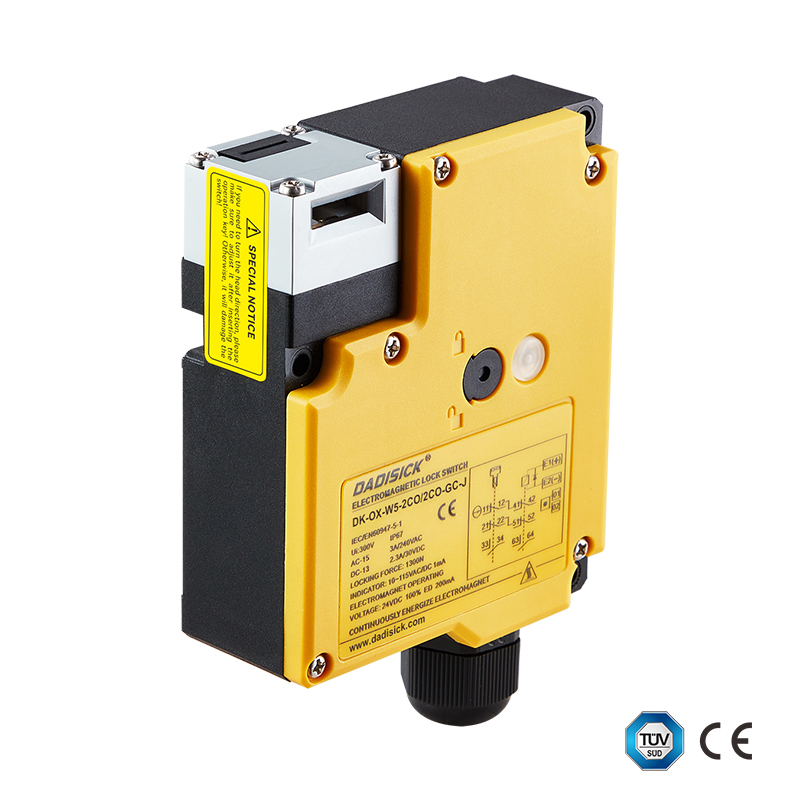

DADISICK safety interlock switch OX-W5 Series

DADISICK safety interlock switch OX-W5 Series

Safety interlock switches with locking function ensure that safety guards, doors and other protective covers remain secure until the hazardous condition is eliminated.6 sets of gold-plated contacts; 4 contact combinations;Locking force 1300N； DC 24V / AC 110V;Optional front/side emergency unlocking.
DADISICK safety interlock switch OX-W5 Series Data Sheet
DADISICK safety interlock switch OX-D6 Series

DADISICK safety interlock switch OX-D6 Series

Safety interlock switches with locking function ensure that safety guards, doors and other protective covers remain secure until the hazardous condition is eliminated.All-metal structure appearance, solid, safe and durable;It also has mechanism locking and monitoring functions; Unique coding and universal coding are optional;Independent redundant dual output: prevent safety hazards caused by failure of a single circuit;Cascade connection of door switches can reduce the number of input points.
DADISICK safety interlock switch OX-D6 Series Data Sheet
Non-contact safety door switch OX-R1 Series

DADISICK Non-contact safety door switch OX-R1 Series

Adopts radio frequency induction coding technology；Universal coding type and single coding type optional；Sensors can be activated from 3 sides；Suppos up to 30 sensors cascaded.
DADISICK Non-contact safety door switch OX-R1 Series Data Sheet
DADISICK Non Contact Safe Door Switch OX-H1 Series

DADISICK Non Contact Safe Door Switch OX-H1 Series

Non-contact zero-wear detection, shock and vibration resistance, long service life；Use code actuators to prevent human modification and effectively protect；3 sides can be sensed, suitable for L-shaped (vertical) installation；Provides universal encoding and unique encoding options；Can support cascading use of 30 door switches.
DADISICK Non Contact Safe Door Switch OX-H1 Series Data Sheet
DADISICK Non Contact Safe Door Switch OX-H1 Series User Manual
