DADISICK Safety Relay Download Center

Safety Relay Introduction

DADISICK safety relays are suitable for monitoring various signals in industrial sites with high safety requirements. In addition to safety light curtain signals, they also include emergency stop signals, safety door switch signals, safety grating signals, two-hand button signals, etc. The main purpose is to protect mechanical operators and mechanical equipment exposed to different degrees of danger. As an important electrical equipment, it plays a key role in protecting equipment and personnel from danger in industrial environments.
Monitor and cut off device power
Detect and cut off the power supply of the equipment through the door lock switch
When the light curtain is blocked, the safety relay triggers the shutdown
When the light curtain is blocked, the safety relay triggers the shutdown
Real-time monitoring of the movement status of the device and cutting off the power supply when abnormal
Real-time monitoring of the movement status of the equipment and cutting off the power supply when abnormal

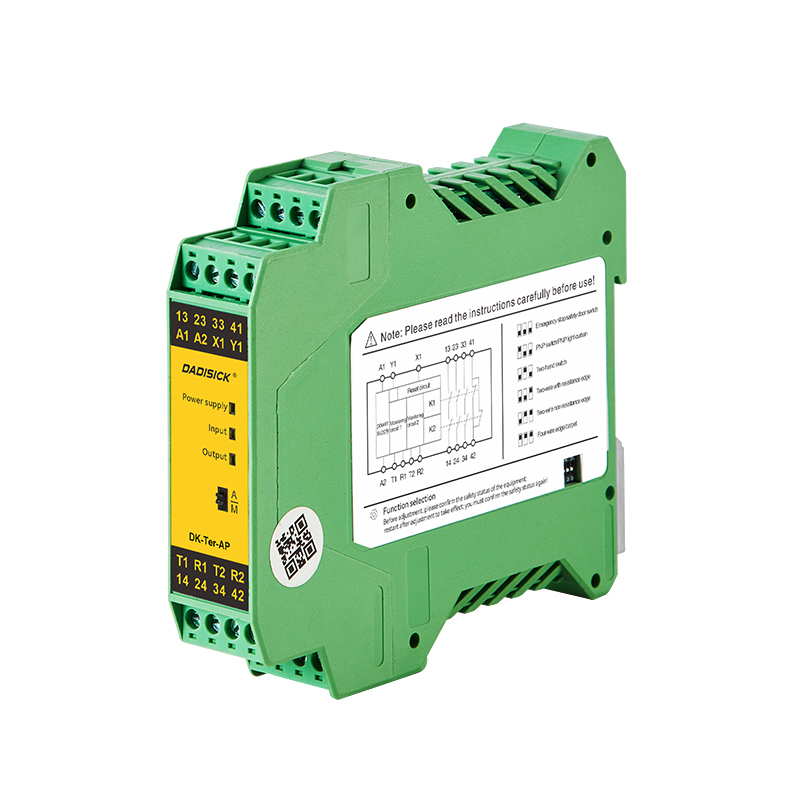

DADISICK Safety Relay Ter-A Series

DADISICK Safety Relay Ter-A Series

DADISICK Safety Relay Ter-A Series is suitable for monitoring various signals in industrial sites with high safety requirements. The compact design of our Safety Relays reduces installation space, making them suitable for a wide range of industrial applications. They feature a width of just 22.5mm and come with screw or spring terminals for flexible installation options. The relays support PLC signal output and have I/O LED indicators for easy status monitoring. Additionally, they offer automatic/manual reset configurations and multi-function configuration dip switches, allowing for quick system setup and adaptation to different safety requirements.
DADISICK Safety Relay Ter-A Series Data Sheet

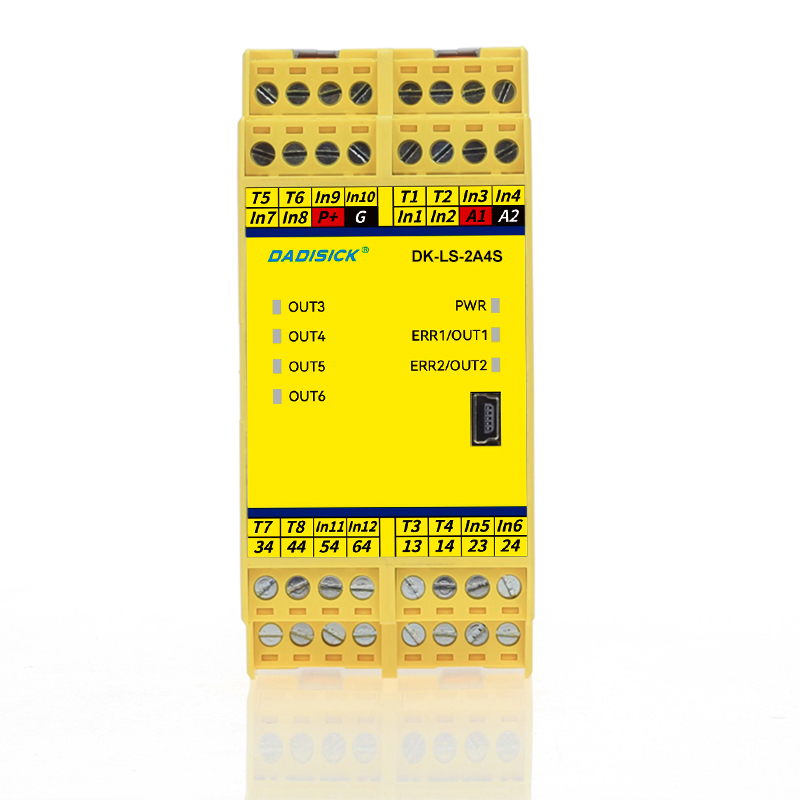

DADISICK Configurable Safety Relay LS-2A4S Series

DADISICK Configurable Safety Relay LS-2A4S Series

DADISICK LS-2A4S is a configurable safety control module that supports a variety of switch-type safety element inputs (such as emergency stop buttons, safety doors, two-hand buttons, etc.), and supports up to 6 safety element inputs, 2 relay safety outputs, and 4 semiconductor outputs. It can use configuration software to set safety control logic to meet a variety of on-site application requirements.
DADISICK Configurable Safety Relay LS-2A4S Series Data Sheet
DADISICK Configurable Safety Relay LS-2A4S Series user's manual
DADISICK Configurable Safety Relay LS-2A4S Series

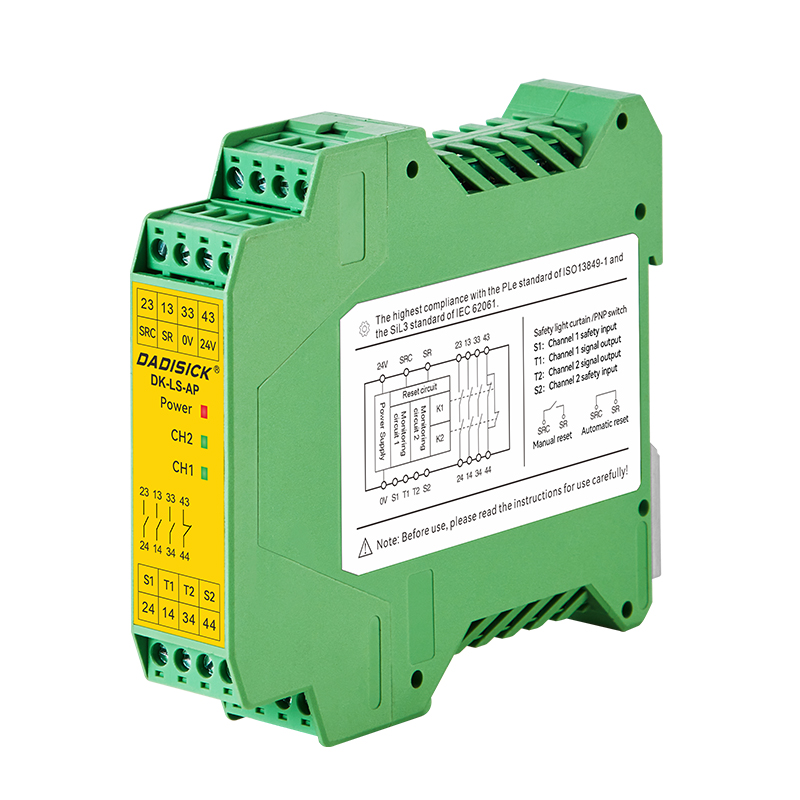

DADISICK Economical Safety Relay LS-A Series

The LS-A series safety relay is a high-reliability component designed specifically for industrial safety control systems. It adopts a certified dual-channel safety monitoring circuit design and realizes real-time fault detection and fault-tolerant control through cross-checking of independent signal paths, thereby minimizing the risk of system failure and ensuring its excellent performance and compliance in key safety scenarios. It is suitable for high-demand fields such as mechanical protection, automated production lines and robotic systems.
DADISICK Economical Safety Relay LS-A Series Data Sheet

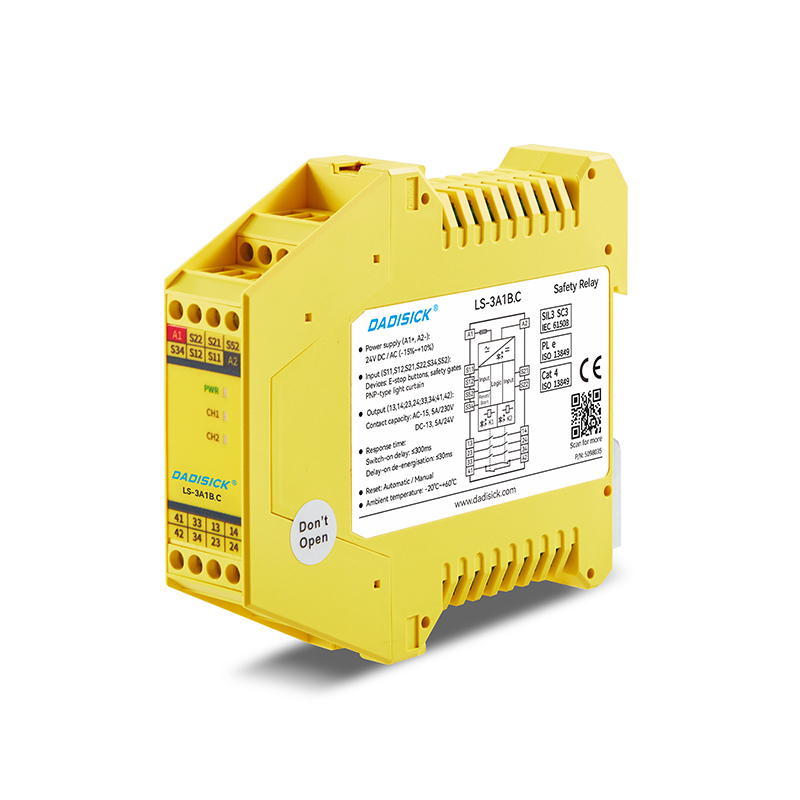

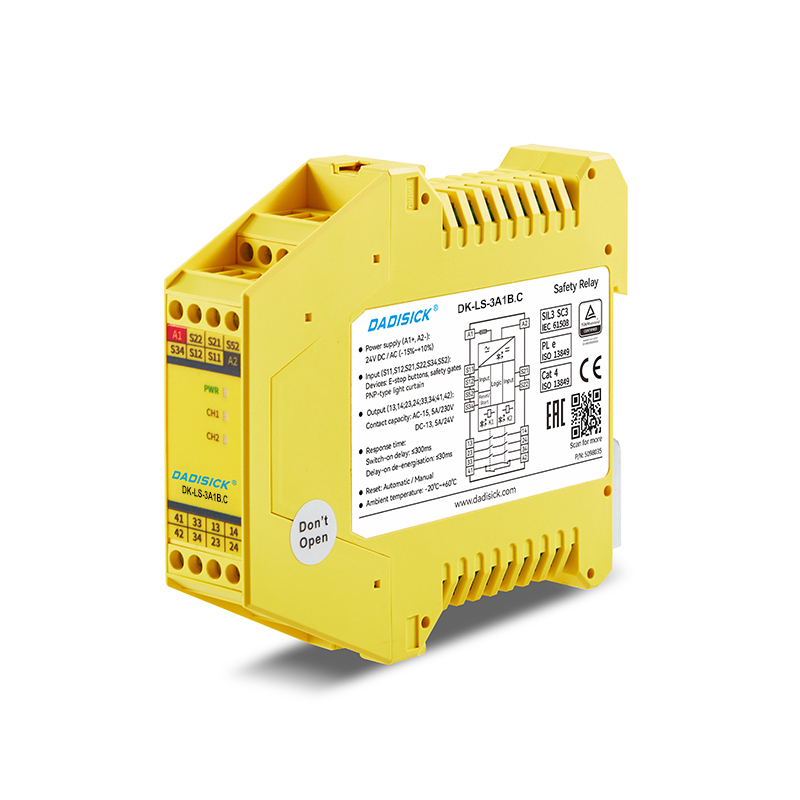

DADISICK Economical Safety Relay LS-3A1B.C Series

DADISICK Economical Safety Relay LS-3A1B.C Series

LS-3A1B.C is a safety relay suitable for emergency stop, safety door, PNP type safety light curtain signal of various mechanical equipment. It has 3 normally open (NO) safety output contacts and 1 normally closed (NC) auxiliary output contact, and can select single/dual channel operation, manual/automatic reset and short circuit monitoring between channels. It adopts the design of components produced in China, standard housing, convenient wiring and common with mainstream products in the market, with excellent cost performance.
DADISICK Economical Safety Relay LS-3A1B.C Series user's manual
DADISICK Economical Safety Relay LS-3A1B.C Series Data Sheet

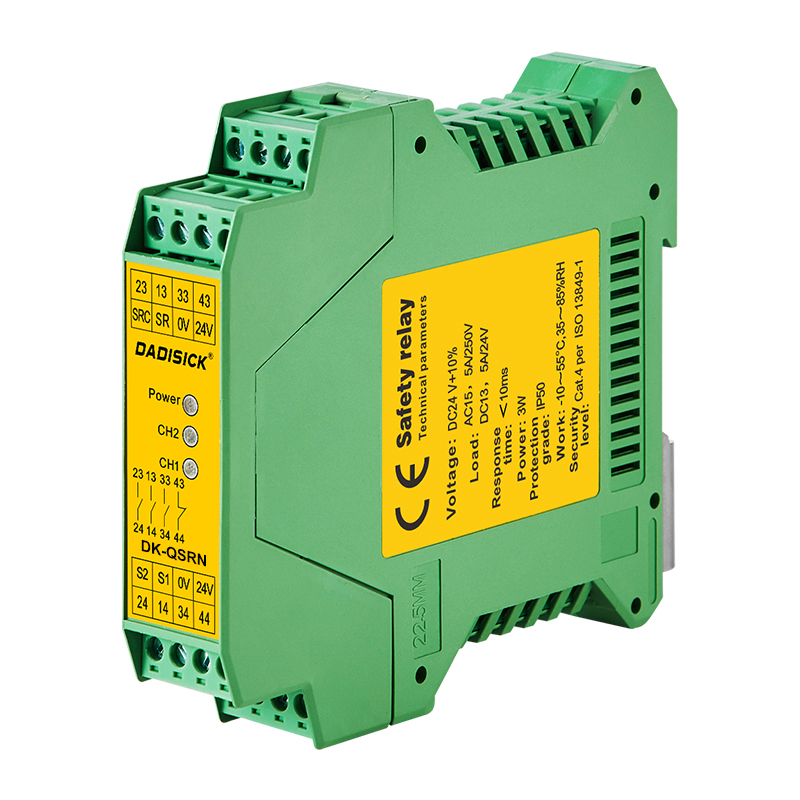

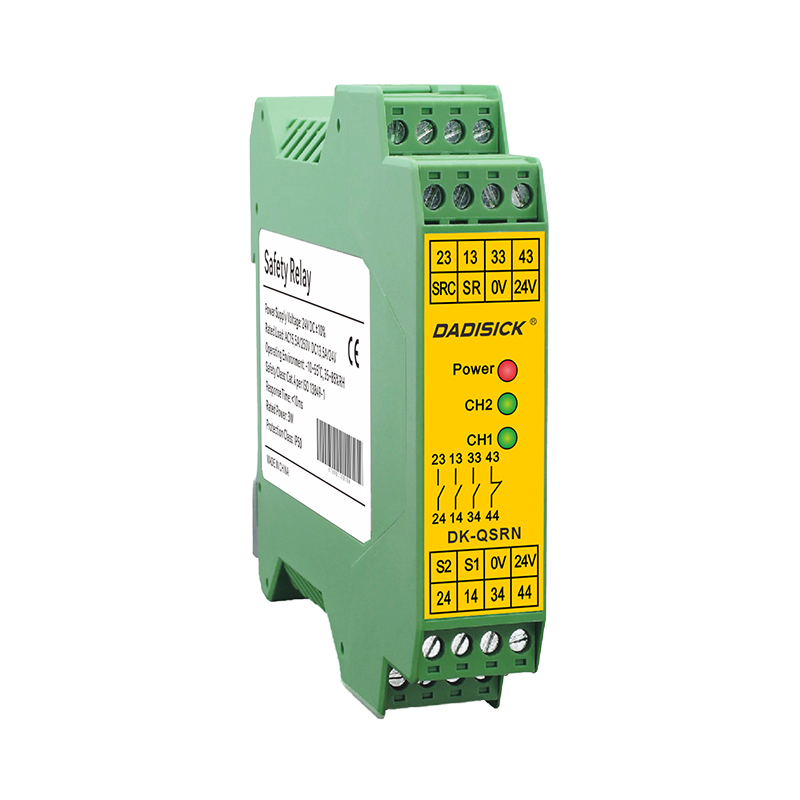

DADISICK Safety Light Curtain Relay QSRN Series

DADISICK Safety Light Curtain Relay QSRN Series

The QSRN safety relay module meets the safety requirements of EN/ISO13849-1Cat.4 and is suitable for monitoring various signals in industrial sites with high safety requirements – including emergency stop signals, safety door switch signals, safety light barrier signals, and safety light curtain signals. Outside the two-hand button signal.
DADISICK Safety Light Curtain Relay QSRN Series Data Sheet
