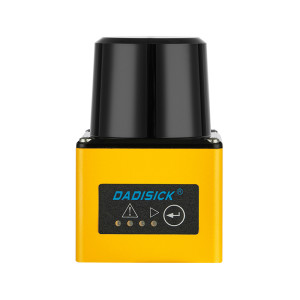

| Categories | Laser Scanning Radar |
|---|---|
| Brand | DADISICK |
| Model | LDS2030B5-5S Series |
| Sensing range： | 0.1 m ~ 20 m |
| Scanning frequency： | 25 Hz |
| Scanning angle range： | 300° |
| Angular resolution | 0.5° |
| Light source： | Infrared laser (905 nm) |
| Laser safety level： | Class 1 (GB7247.1-2012, Eye-safe IEC) |
| Update Time | Nov 21,2024 |
|
Laser Scanning Radar Basic Information
|
||
|
Product number
|
Two-dimensional tof obstacle avoidance laser radar |
|
|
Model
|
LDS2030B5-5S |
|
Output | I/O output & Ethernet output | |
|
Features
|
||
|
Light source
|
Infrared laser (905 nm) |
|
Laser safety level | Class I (GB 7247.1-2012, Eye safe IEC) | |
Laser spotlight diameter | 8 mm | |
Laser spotlight scan angle | 12.5 mrad | |
|
Scanning angle range
|
300° |
|
|
Scanning frequency
|
25 Hz |
|
|
Scanning Angular Resolution
|
0.5° |
|
Sensing range | 0.1 m ~ 20 m | |
10% reflectivity range | 15 m | |
Self-learning function | Automatic environment scanning, generating area | |
Outdoor performance | Anti-dusty, Anti-sunlight | |
Rain, fog and smoke penetration | Supported | |
Technical Performance | ||
Measurement error ● System error {typical} ● Statistcal error {1 σ} | 1 cm | |
Built-in application | ● Regional monitoring ● Monitoring mode: Point number monitoring / target width monitoring / contour monitoring ● Monitor signal level: Attention / warning / alarm ● Number of regional groups: 16 groups, support self-learning background exclusion ● Concurrent work area group number: 16 (max) ● Guide the network camera to monitor the target video positioning and tracking | |
Self-test equipment | ● Contents: Transparent cover dirt / block / high temperature / low temperature ● Output mode: indicator + TCP packets | |
Device Interface | ||
Ethernet | Rate: 10/100 Mbps Network protocol: TCP/IP Function: Device configuration / measurement data output / monitor signal output | |
I/O Input | Input port: 4 Type: Level input High level range: DC 10 V - 30 V Low level range: DC 0 V - 1.2 V Preset functions: Monitor area group selection (0 × 0 ~ 0 × F) Forced cancellation / forced activation of regional monitoring signal, effective level: high level Power saving and life extension control, effective level: high level | |
I/O Output | Input port: 4 Type: PNP OC output Level voltage: Supply voltage Power on: High resistance Preset function: Area monitor signal output / device ready Active state: High level | |
Indicator light | Quantity: 2 Definition: HTR (Run status indication: detection signal / self-learning / ready to restart) ERR (Device alarm: Transparent cover dirt / block, high and low temperature) | |
Front panel button | Quantity: 1 Definition: Shielded monitor signal output / start background self-learning / restart device | |
|
Mechanical/electronic paramete
|
||
|
Operating voltage
|
DC 10 V – 30 V |
|
|
Power dissipation
|
3.4 W (measuring), 7.6 W@DC 12 V / 6 W@DC 24 V (heating) |
|
|
Degree of protection (IP)
|
IP67 (GB 4208-2008) |
|
Insulation resistance | 1 MΩ (GB 16796 - 2009.5.4.4) | |
Electric strength | 0.5 KV (GB 16796 - 2009.5.4.3) | |
Dimension (L ╳ W ╳ H) | 80 ╳ 85 ╳ 102 (mm) | |
Interface cable lengt | 1 Meter | |
Weight | 0.6 kg | |
|
Interface
|
||
|
USB
|
Micro - USB |
|
|
Input
|
GND/NC × 4 |
|
|
Switch output
|
NPN × 3, device working status indication × 1 |
|
|
Signal output hold time
|
100 ms ~ 10,000 ms (adjustable) typical value 330 ms |
|
Response time | Status indicators | |
Status Indicator | Status indication 1, area group indication 2 | |
Working Environment Standard | ||
Electrostatic discharge | 6 KV (GB/T 17626.2-2006, class 3) IEC | |
Fast bursts | 1 KV (GB/T 17626.4-2008, class 2) IEC | |
Electromagnetic field radiation immunity | GB/T 17626.3-2006, class 2 | |
Surge immunity | GB/T 17626.5-2008 Power interface: 1.2 / 50 μs, 2 KV / 1 KA (class 3) Ethernet interface: 10 / 700 μs, 1 KV / 25 A (class 2) I/O interface: 1.5 / 50 μs, 0.5 KV / 0.25 KA (class 1) | |
Impact ● Single impact ● Continuous impact | GB/T 2423.5 15g, 11 ms 10g, 16 ms | |
Vibration ● Frequency range ● Amplitude | GB/T 2423.10 10 Hz ~ 150 Hz 5 g | |
Humidity | 93%，+40℃，2h (GB/T 2423.3) | |
Operating temperature range | -25℃ ~ +50℃ | |
Storage temperature range | -30℃ ~ +70℃ | |
Ambient illumination range | 0 lux ~ 80,000 lux | |
Rainfall range | ≤ 20 mm/h | |
Fog / haze visibility range | ≥ 2 km | |
1: Normal working conditions of regional monitoring function; The typical rainfall reference value is 4 mm/h for heavy rain and 10 mm/h for heavy rain. | ||
2: Normal working conditions of regional monitoring function; The visibility reference value of moderate haze and mist is 3 km, and that of heavy haze is 1 km. | ||
