The products here are part of DADISICK's brand product line, which is independently developed, manufactured, and sold.
We provide stable, high-quality products and ensure fast delivery.
| Categories | High-temperature and Low-temperature Capacitive Proximity Sensor |
|---|---|
| Brand | DADISICK |
| Model | Low-temperature Resistant Capacitive Proximity Sensor | CZ08 Pre-wired Shielded Non-Shielded | CZ08-01NO-ZAA-3A-H30, CZ08-01NC-ZAA-3A-H30, CZ08-01PO-ZAA-3A-H30, CZ08-01PC-ZAA-3A-H30, CZ08-02NO-ZBA-3A-H30, CZ08-02NC-ZBA-3A-H30, CZ08-02PO-ZBA-3A-H30, CZ08-02PC-ZBA-3A-H30, CZ08-01NO-ZAA-3A-H40, CZ08-01NC-ZAA-3A-H40, CZ08-01PO-ZAA-3A-H40, CZ08-01PC-ZAA-3A-H40, CZ08-02NO-ZBA-3A-H40, CZ08-02NC-ZBA-3A-H40, CZ08-02PO-ZBA-3A-H40, CZ08-02PC-ZBA-3A-H40 |
| Size: | Cylindrical M8 |
| Detection range: | 0.1-1mm Adjustable / 0.1-2mm Adjustable |
| Case material: | Nickel Plated Brass |
| Connection type: | 2M cable |
| Output method: | NPN NO, NPN NC, PNP NO, PNP NC |
| Degree of protection: | IP67 |
| Operating temperature: | -30℃ to +70℃ / -40℃ to +70℃ |
| Update Time | Apr 20,2025 |
|

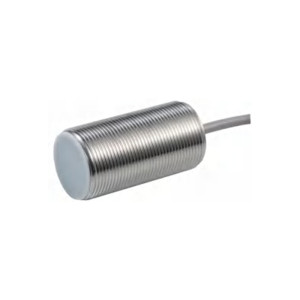

Low-temperature Resistant Capacitive Proximity Sensor Cylindrical M8 Pre-wired Shielded Non-Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
CZ08-01NO-ZAA-3A-H30 | NPN NO | 0.1-1mm Adjustable | 2M | 200mA | Shielded | 10-30VDC | Nickel Plated Brass | |
CZ08-01NC-ZAA-3A-H30 | NPN NC | |||||||
CZ08-01PO-ZAA-3A-H30 | PNP NO | |||||||
CZ08-01PC-ZAA-3A-H30 | PNP NC | |||||||
CZ08-02NO-ZBA-3A-H30 | NPN NO | 0.1-2mm Adjustable | 2M | 200mA | Non-Shielded | 10-30VDC | Nickel Plated Brass | |
CZ08-02NC-ZBA-3A-H30 | NPN NC | |||||||
CZ08-02PO-ZBA-3A-H30 | PNP NO | |||||||
CZ08-02PC-ZBA-3A-H30 | PNP NC | |||||||
CZ08-01NO-ZAA-3A-H40 | NPN NO | 0.1-1mm Adjustable | 2M | 200mA | Shielded | 10-30VDC | Nickel Plated Brass | |
CZ08-01NC-ZAA-3A-H40 | NPN NC | |||||||
CZ08-01PO-ZAA-3A-H40 | PNP NO | |||||||
CZ08-01PC-ZAA-3A-H40 | PNP NC | |||||||
CZ08-02NO-ZBA-3A-H40 | NPN NO | 0.1-2mm Adjustable | 2M | 200mA | Non-Shielded | 10-30VDC | Nickel Plated Brass | |
CZ08-02NC-ZBA-3A-H40 | NPN NC | |||||||
CZ08-02PO-ZBA-3A-H40 | PNP NO | |||||||
CZ08-02PC-ZBA-3A-H40 | PNP NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 100HZ | ||
Response time | 1.5ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -30℃ to +70℃ / -40℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | POM / PTFE | ||
