| Categories | Standard Capacitive Proximity Sensor |
|---|---|
| Brand | DADISICK |
| Model | Standard Capacitive Proximity Sensor | CR18 Pre-wired Shielded | CR18-08NO-ZAA-3A-MR, CR18-08NC-ZAA-3A-MR, CR18-08PO-ZAA-3A-MR, CR18-08PC-ZAA-3A-MR, CR18-08PS-ZAA-4A-MR, CR18-08NS-ZAA-4A-MR |
| Size: | Cylindrical M18 |
| Detection range: | 2-8mm Adjustable |
| Case material: | POM |
| Connection type: | 2M cable |
| Output method: | NPN NO/NC, PNP NO/NC |
| Degree of protection: | IP67 |
| Operating temperature: | -25°C~+70°C |
| Update Time | Apr 24,2025 |
|

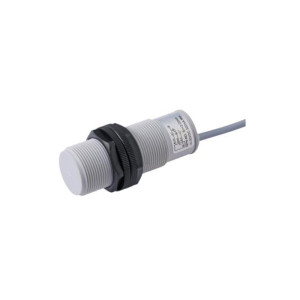

Standard Capacitive Proximity Sensor Water Pressure Cylindrical M18 Pre-wired Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
CR18-08NO-ZAA-3A-MR
| NPN NO | 2-8mm Adjustable | 2M Cable | 200mA | Shielded | 10-30VDC | POM | |
CR18-08NC-ZAA-3A-MR | NPN NC | |||||||
CR18-08PO-ZAA-3A-MR
| PNP NO | |||||||
CR18-08PC-ZAA-3A-MR
| PNP NC | |||||||
CR18-08PS-ZAA-4A-MR | PNP NO&NC | |||||||
CR18-08NS-ZAA-4A-MR | NPN NO&NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <2V | ||
Switching frequency
| 100HZ | ||
Response time | 1.5ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <5%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PBT | ||
